Electric Wire Rope Hoist Manufacturers

Suppose, there are different loads which weigh from low to high and they need to be lifted and transported. Then, it would be easy for lifting small weighs, but what about heavy loads? Then, Electric Wire Rope Hoist will be helpful in doing such tasks. Electric Wire Rope Hoist is available in various models and each model has certain uniqueness. Raw materials, including Ms Sheets, breaks, I beam, motors and many more are used in manufacturing Electric Wire Rope Hoist. This can be manufactured on the basis of a clients’ requirement. This is widely used in many areas which would help in reducing the physical work done by the mankind.

This is used in Engineering, in industries and in almost every field. Electric Wire Rope Hoist is durable and highly efficient. It is very easy to operate this tool. Initially, it would be a bit confusing, but once you get handy on this, it would be very easy to operate. It is Corrosion resistant and is the important and most needed feature of Electric Wire Rope Hoist. It is also strong and steady as expected, the reason for the same being, the purpose for which it is used. It is used in lifting and transporting heavy weights rather than normal weights. Crab Hoists, Farness Duty Hoists and Electric Chain Hoists are some of the best models of Electric Wire Rope Hoist. Another model like Frame Proof Hoists is one of the unique models of Electric Wire Rope Hoist.

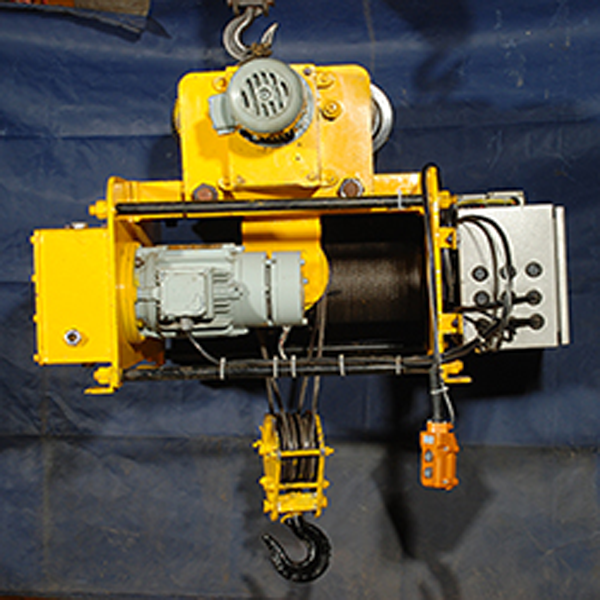

Electric Wire Rope Hoist
Enquiry Now

Salient Features of Electric Wire Rope Hoist:

It includes

  • Squirrel Cage Crane Induction Motor with 50% CDF per hour
  • Gear Boxes are Single, Helical.
  • Control Panel in this rope hoist is free from the troubles of fittings, transformers and fuses and can be replaced by roller type snap action in Electric Wire Rope Hoist
  • Trolley can be adjustable based on I-beam size that is one of the raw materials used in the manufacturing.
  • It helps in minimizing the losses and increases the efficiency that is needed in every request.
  • Gears of this Electric Wire Rope Hoist assure very straight operation by their movement and also by handling the heat. Limit gauges are used to test the machined parts.
  • All High-speed rotational parts are provided with the anti-frictional bearings.
  • Every part of Electric Wire Rope Hoist is easily accessible, and the maintenance is very easy.
  • Minimum number of parts requires maintenance.
  • Inspection procedures are being followed which make Electric Wire Rope Hoist free from faults. This is very easy to use and handle.

It is also available with Manual type of gear and is available with the trolley as well.

We are Manufacture of Electric Wire Rope Hoist that is available in several models. Our Hoist is developed using optimum quality raw material such as MS Sheets, MS angles, I beam, motors, brakes etc. These are hugely demanded in machine shop, engineering industry and foundry and can be customized as per the requirement of clients.

Features:

  • Corrosion resistance
  • High efficiency
  • Sturdy
  • Easy to operate
  • Durable

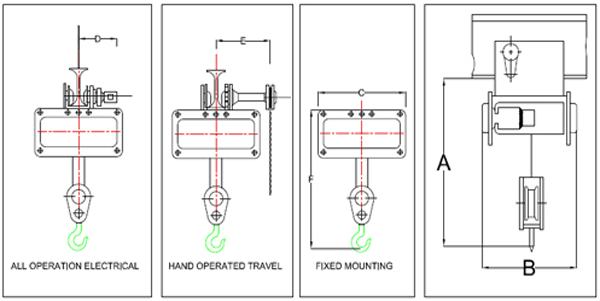

Drawing Of Electric Wire Rope Hoist

Electric Wire Rope Hoist
Enquiry Now



Available Models:

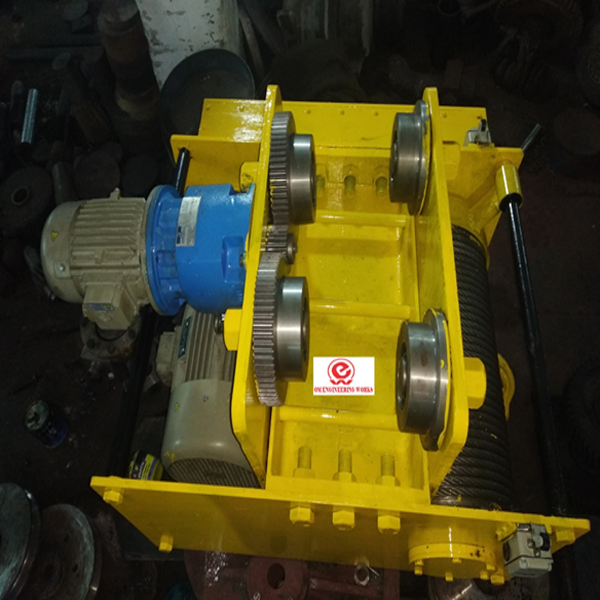

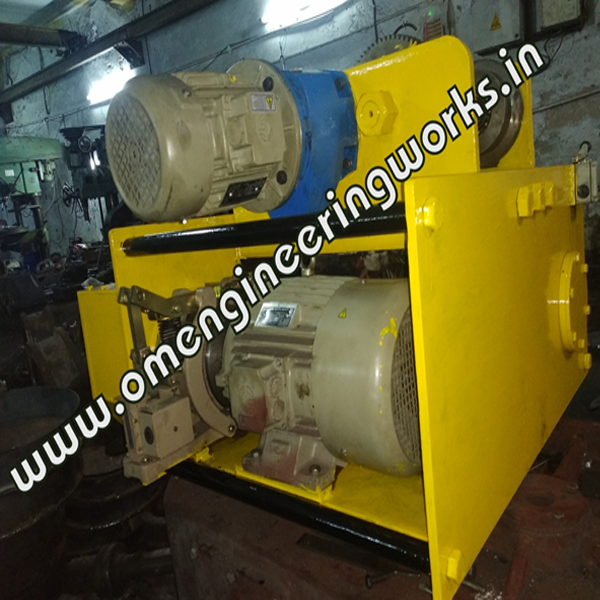

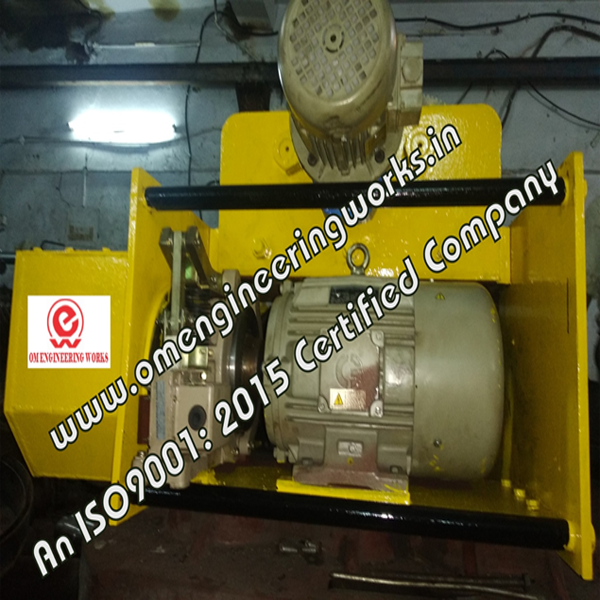

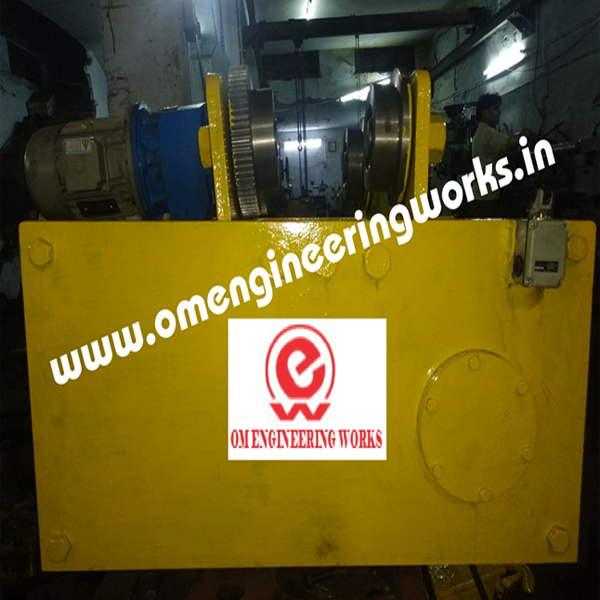

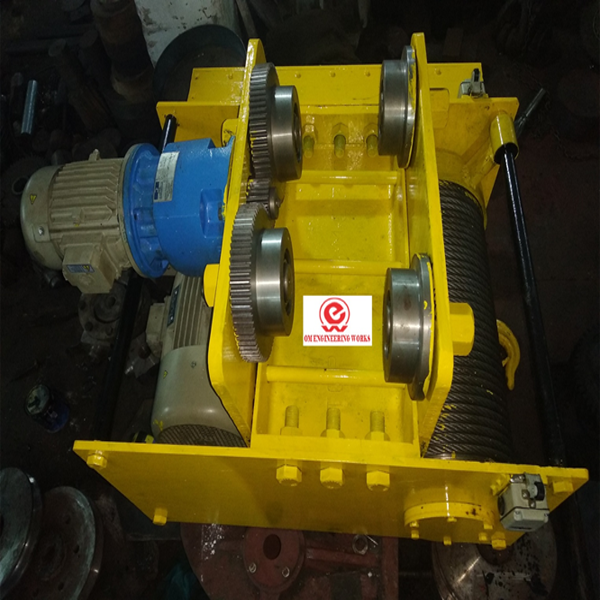

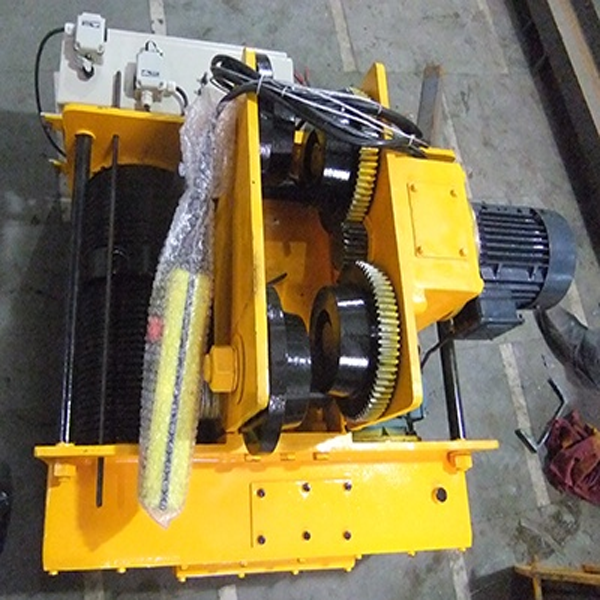

Electric Wire Rope Hoist
Enquiry Now
Electric Wire Rope Hoist
Enquiry Now
Electric Wire Rope Hoist
Enquiry Now
Electric Wire Rope Hoist
Enquiry Now
Electric Wire Rope Hoist
Enquiry Now
Electric Wire Rope Hoist
Enquiry Now

Type of Electric Wire Rope Hoist:

  • Electric Chain Hoists
  • Electric Wire Rope Hoists
  • Crab Hoists
  • Frame Proof Hoists
  • Farness Duty Hoists
  • Any Specify Hoists

SALIENT FEATURES:

  • Motors : TEFC Foot cum Flange Mounted Squirrel Cage Crane Duty Induction Electric Motor S4 Duty 150 Starts Per Hour 40% CDF
  • Gear Boxes : Single Helical Splash Lubricated CI/MS Fabricated Housing Triple/Quadnple Stage Reduction Bale/Roler Bearing Mounting Crane.
  • Drum : MS Seamless Pipe Fabricated With Plate Single Grooved Fine Machined with guide Nut For Proper Laying of wire rope.
  • Control Panel : Contractors step down Transformers H.R.C. fuses, Transformers, fittings, will be provided in Control Panel. Limit Switches snap action roller type Providing in Main Hoisting.
  • Trolley : Available in Geared Manual type, Motorised, Adjustable as per I beam size.

Technical Data for Electric Wire Rope Hoist:

Model

S.W.L. In Kg.

Lift (Mtr.)

Wire Rope (Dia)

No. of Fall

Hoisting Speed MTR/MIN

Hoisting Motor

C.T. Motor H.P.

A

B

C

D

E

F

M1/0.5/6

500

6

6

2

6

1

0.25

640

780

475

320

300

590

M1/1/3

1000

6

6

4

3

1

0.25

670

780

475

320

300

620

M2/1/6

1000

6

8

2

6

2

0.5

680

885

520

410

410

630

M2/1/9

1000

6

8

2

9

3

0.5

680

885

520

410

410

630

M2/1/12

1000

6

8

2

12

4

0.5

680

885

520

410

410

630

M2/1.5/4

1500

6

8

3

4

2

0.5

730

885

520

410

410

680

M2/1.5/6

1500

6

8

3

6

3

0.5

730

885

520

410

410

680

M2/1.5/8

1500

6

8

3

8

4

0.5

730

885

520

410

410

680

M2/2/3

2000

6

8

4

3

2

0.5

730

885

520

410

410

680

M2/2/4.5

2000

6

8

4

4.5

3

0.5

730

885

520

410

410

680

M3/2/4.5

2000

6

10

2

4.5

3

0.5

800

885

685

510

480

750

M3/2/6

2000

6

10

2

6

4

0.5

800

885

685

510

480

750

M3/2/7.5

2000

6

10

2

7.5

5

0.5

800

885

685

510

480

750

M3/2/11

2000

6

10

2

11

7.5

0.5

800

885

685

510

480

750

M3/3/3

3000

6

10

4

3

3

0.5

940

885

685

510

480

810

M3/3/4

3000

6

10

4

4

4

0.5

940

885

685

510

480

810

M3/3/5

3000

6

10

4

5

5

0.5

940

885

685

510

480

810

M3/3/7.5

3000

6

10

4

7.5

7.5

0.5

940

885

685

510

480

810

M3/4/3

4000

6

10

4

3

4

0.5

980

885

685

510

480

930

M3/4/4

4000

6

10

4

4

5

0.5

980

885

685

510

480

930

M3/4/5.5

4000

6

10

4

5.5

7.5

0.5

980

885

685

510

480

930

M4/5/3

5000

6

12

4

3

5

1

1080

955

835

550

550

1030

M4/5/4.5

5000

6

12

4

4.5

7.5

1

1080

955

835

550

550

1030

M4/5/6

5000

6

12

4

6

10

1

1080

955

835

550

550

1030

M4/5/7.5

5000

6

12

4

7.5

12.5

1

1080

955

835

550

550

1030

M4/7.5/3

7500

6

14

4

3

7.5

1

1135

1055

835

550

550

1085

M5/10/3

7500

6

14

4

4

10

1

1135

1055

835

550

550

1085

M5/10/4

7500

6

14

4

5

12.5

1

1135

1055

835

550

550

1085

M5/10/4.5

10000

6

16

4

3

10

1

1520

1205

1050

550

650

1470

M5/10/6

10000

6

16

4

4

12.5

1

1520

1205

1050

550

650

1470

M5/12.5/3

10000

6

16

4

5

15

1

1520

1205

1050

550

650

1470

M5/12.5/3.5

10000

6

16

4

6

20

1

1520

1205

1050

550

650

1470

M5/12.5/5

12500

6

18

4

3

12.5

1.5

1520

1270

1050

550

650

1470

M5/15/3

12500

6

18

4

4

15

1.5

1520

1270

1050

550

650

1470

M5/15/4

12500

6

18

4

5

20

1.5

1520

1270

1050

550

650

1470

M4/7.5/4

15000

6

20

4

3

15

1.5

1700

1340

1050

550

650

1650

M4/7.5/5

15000

6

20

4

4

20

1.5

1700

1340

1050

550

650

1650
