Electric Chain Hoists Manufacturers

Intended to carry objects and not people, Dumbwaiter lifts are usually used in areas which require usual consistent heavy lifting from day-to-day chores. Factories and Storage facilities are the ones that benefit the most from such lifts. Also found in schools, commercial areas, banks and buildings, they also operate in kitchens.

Electric Chain Hoists are more commonly known as "motors" in the industry of entertainment. They are used in applications such as; lifting or fastening overhead truss systems, arrays for lighting and speakers. Electric chain hoists can assist in carrying heavy freight from one location to the other with a simple push of a button. The electric chain hoist turns out to be extremely cost effective in the long haul. Money does not need to be spent on hiring professionals to operate the apparatus as it can conveniently be managed by an amateur. Investing and squandering money on chain hoists is very reasonable since it can help obtain maximal productivity at low costs, and this is guaranteed. It also saves immensely on labour expenses and time, which is precious. Electric Chain Hoists are highly endorsed and preferred in each and every premise.

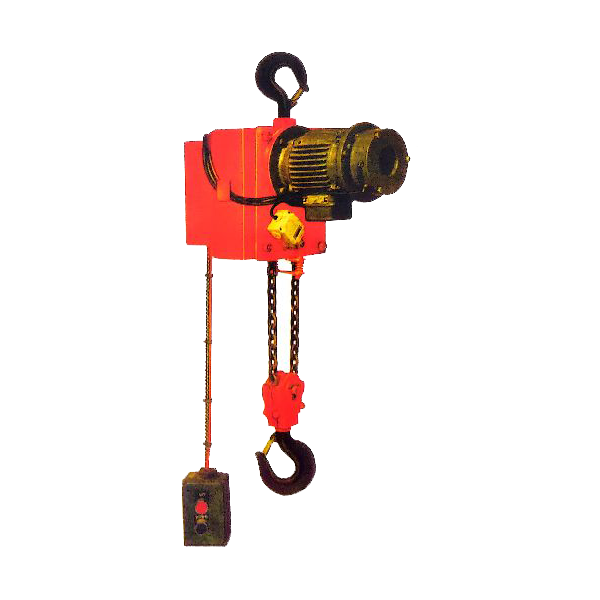

Electric Chain hoist 0.5 MT to 3.0 MT.
Enquiry Now

Many companies supply various kinds of Electric Chain Hoists of 0.5 MT to 3.0 MT. The electric chain hoist requires numerous guideline features that are anticipated from products traditionally, which are usually the top choices for most electric chain hoist manufacturers and fabricators. An Electric Chain Hoist must be constructed to collaborate and integrate with the system as per the choice of the user. These can be used in the following: Overhead Bridge Cranes, Rail Systems, Jib Crane or Gantry Crane. The trolleys need to supply an effortless motion of freight and create motion of low resistance I - beam support.

Special Features of Electric Chain Hoist -

  • Hoists are widely available and accessible for both single phase and three phase.
  • Two speed, three phase hoist motors and regulators are available for all the sorts and types of models.
  • Single speed, three phase hoist electric chain hoists and controls are available for LM05 and LM10 models and re - connectable for 208, 230 or power supply of 460/3/60.
  • 115 volt single phase hoists have only a single speed.
  • Three phase hoist motors are F class insulated, 50% effective duty graded.
  • Two - speed TMU trolley drive unit (trolley speed is about 80/20 FPM). Trolley brake, drop lugs and bumpers are standard.
  • Drive of variable frequency option on TMU.
  • Trolley control panel are indispensable and firmly fixed to the motor.

The electric chain hoist needs to have many standard features you expect from product traditionally know as options on most electric chain hoist manufactures. An Electric Chain Hoist must be design to integrate into a system of choice. These include Overhead Bridge Cranes construction Bridge Crane Kits, Rail Systems, to a standalone unit on a Jib Crane or Gantry Crane. Trolleys must provide smooth movement of load and create low resistance movement I beam girders.

Specifications For Electrical Chain Hoist

Capacity in Kg.
500
1000
2000
3000
No. of Fall
1
1
2
2
Hoisting Speed Mt./Min
5
5
2.5
2.5
H.P. of Motor
0.75
1.5
1.5
1.5
Closed Ht. Hook to Hook
750
775
780
780
Clear Width
250
250
250
250
Clear Length
550
570
575
575

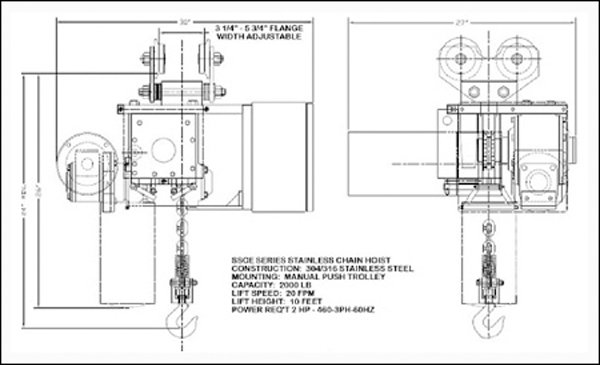

Drawing Of Electrical Chain Hoist

Electrical Chain Hoist
Enquiry Now



Electric Chain Hoists Video

Om Engineering Gears exhibited for the very first time video Uploaded
